Products / Wire Weaving Machine

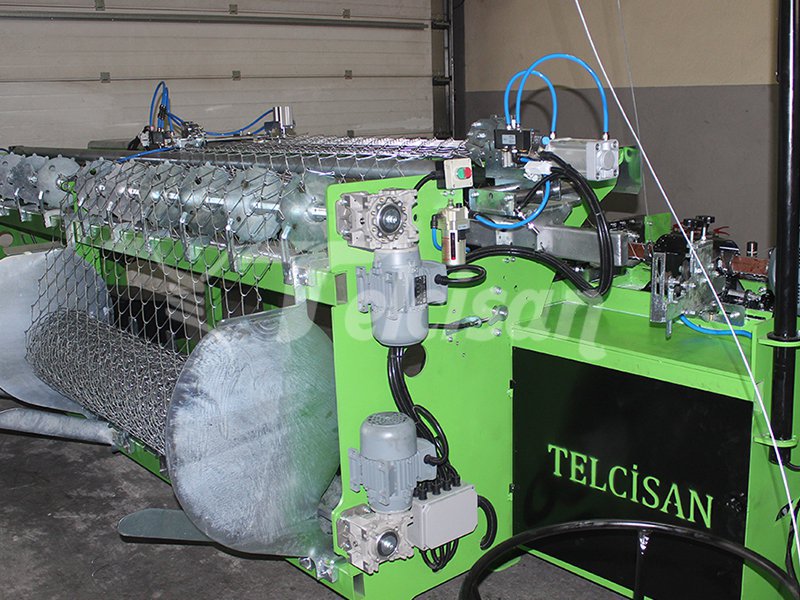

Machine Type (TLS-600 )
Weaving width 20 – 620 cm
Wire mesh diameter (GALVANIZED) 1.8 – 3.2 mm
Wire mesh diameter (PVS) 2.9 – 4.5 mm
Opening intervals 40x40 – 85x85 mm
Controling system PLC
Total power 5,5 Kw
Machine weight 2020 Kg
Machine dimensions Height: 250 cm
Width:   200 cm
Length:  780 cm
Capacity/hour 120 – 160 M2
Resistance value of wire mesh 450 – 500 Nw/mm2
Pattern number(Optional) 3 types
Specifications
  • Width and length dimensions are entered via touch screen. At the end of the work, the machine stops and gives alarm.
  • In case of wire intertwining, there are 3 different stop systems.
  • With the electronic cycle adjustment button, it works at the required speed.
  • It is adjusted easily with the manual, semi-manual and automatic options.
  • Double sided twist can be added.
  • Minimum weaving width is 20 cm.
  • A system developed for changing the pattern practically and using it easily.
  • Electric power 380V.
  • Ability to work nonstop for 24 hour.
  • Thanks to internet connection, ability of remote access, updating and trouble shooting.
  • It has double-entry system.
  • GUARANTEE: (3) years excluding user errors.
Note: As the equipment necessary for the machine use, a 200 lt /8 bar air compressor is needed.
